Transitioning to automated rug production requires balancing high output targets against strict facility constraints. For commercial manufacturers evaluating new equipment, the installation layout dictates long-term operational efficiency. Facility managers must choose carefully between a single-sided or mirrored configuration. This vital layout decision impacts everything from daily material handling to routine maintenance schedules. Poor planning often creates severe production bottlenecks.
This guide breaks down the structural, operational, and maintenance realities of both installation types. We will explore how different configurations affect your production floor. Operations managers will gain evidence-based insights to make confident facility decisions. You will learn how to optimize floor space without sacrificing operator safety. Finally, we will cover how post-tufting workflows must adapt to your chosen footprint. You can then structure your manufacturing space for maximum reliability.
Single-sided tufting machine setups prioritize operator accessibility and simplified maintenance, making them ideal for facilities prioritizing flexibility and rapid changeovers.
Back-to-back tufting machine installations maximize yield per square meter and centralize yarn feeding, but require rigorous safety zoning and complex maintenance protocols.
The deciding factors for a robotic tufting machine layout rely on three metrics: available floor space, creel (yarn feeding) logistics, and tolerable maintenance downtime.
Proper primary cloth tensioning and post-tufting latex workflows must be adapted to fit the chosen installation footprint.
Upgrading from manual tools to industrial robotic tufting introduces massive footprint requirements. The physical frame size and the yarn creel system drive these demands. Modern production units span several meters in width. They require substantial clearance for moving mechanical arms. Facility managers often face a hard limit on available square footage. The layout decision directly impacts how many units can operate simultaneously. You must optimize this layout without violating strict safety compliances.
Space limitations quickly become the primary bottleneck for scaling operations. Poor facility planning creates severe material-handling traffic jams. Workers struggle to navigate between large mechanical frames and backing material stations. A successful installation minimizes these idle times entirely. It ensures safe, unimpeded operator movement across the entire factory floor.
Furthermore, structural stability plays a massive role in quality control. Consistent primary cloth tension across large operating frames remains non-negotiable. If machines sit too close without proper structural planning, vibrations transfer through the floor. This vibration loosens the necessary "coin-bounce" tightness of the primary cloth. You must align your floor plan strategy closely to operational goals. Balancing spatial limitations against high output targets requires careful mathematical planning.
Ignoring the swing radius of automated mechanical arms during operation.
Failing to allocate dedicated pathways for natural latex delivery carts.
Underestimating the square footage needed for bulk yarn storage near the creels.
A single-sided configuration represents a highly linear approach to manufacturing layout. The working frame faces the main operational aisle directly. The yarn feeding system, known as the creel, sits directly behind or to one side of the unit. This setup offers immense visibility. Operators can monitor the entire production cycle from a single vantage point.
This layout delivers significant operational advantages. Technicians gain unrestricted 360-degree maintenance access to the equipment. They can easily reach delicate needle bars, pneumatic cylinders, and backing materials. If a cut-pile mechanism misfires, mechanics can troubleshoot the issue immediately. They do not need to navigate around a second active robot. A single-sided tufting machine isolates downtime effectively. Maintenance on one unit never impedes the traffic or production of adjacent machines.
Material handling also becomes exceptionally straightforward. Loading primary tufting cloth onto the frame requires minimal maneuvering. Applying initial natural latex or secondary backing happens right in the main aisle. Workers can unroll heavy fabrics without dodging moving machinery. This simplified workflow accelerates changeover times between different rug designs.
However, this setup carries notable implementation risks. It represents a highly inefficient use of total floor space. You will achieve a much lower production volume per square meter compared to condensed layouts. Factories with high rent costs often struggle to justify the spatial footprint. The linear design leaves large pockets of unused space behind the creel systems.
Keep your operational aisles wide enough for dual-directional forklift traffic. Store your most commonly used acrylic and wool yarn spools immediately adjacent to the creel. Designate specific zones for raw material staging to prevent aisle clutter. Maintain clear lines of sight from the main control panel to the needle mechanism.
A mirrored configuration drastically alters the dynamics of a production floor. Two robotic units sit facing opposite directions, installed back-to-back. They often share a central operational aisle for material loading. In many highly condensed layouts, they share a consolidated central yarn creel system. This architecture redefines spatial efficiency in commercial manufacturing.
The operational advantages heavily favor high-volume producers. This setup provides unmatched spatial density. It drastically reduces the overall footprint required for two active machines. You instantly free up valuable warehouse space for finishing stations. These stations handle vital post-production tasks like carving, shearing, and edge taping. Centralized yarn feeding represents another massive benefit. A shared creel setup reduces the distance operators must travel to reload spools. Whether they handle heavy wool or lighter acrylic yarns, operators save thousands of steps daily. A back-to-back tufting machine maximizes your production yield per square meter.
Despite these benefits, this layout introduces severe implementation risks. Maintenance pinch points present a constant challenge. Accessing the rear pneumatic components of the machines often feels claustrophobic. Technicians must navigate tight corridors between dual active frames. This proximity requires strict, non-negotiable lockout/tagout safety procedures.
Vibration and tension transfer present an even greater technical hurdle. Dual heavy-duty machines operate in extremely close proximity. They generate immense kinetic energy and harmonic vibrations. You must implement robust floor anchoring systems. Without deep concrete anchors, vibrations compromise the primary cloth. The backing material loses its essential "coin-bounce" tightness. This loosening leads directly to dropped stitches and ruined rug designs.
You must enforce strict physical and electronic safety barriers. Install overlapping safety scanners compliant with OSHA and EN standards. Train all operators on mandatory lockout/tagout procedures before they enter the central creel zone. Never allow technicians to bypass optical safety curtains during active production runs.
Selecting the optimal layout requires a data-driven approach. You cannot base this decision purely on theoretical output numbers. You must evaluate structural limits, workflow patterns, and safety requirements simultaneously. Choosing a robotic tufting machine demands rigorous spatial auditing. We developed a comprehensive evaluation matrix to guide your facility planning.
Follow these specific steps to evaluate your facility:
Calculate Footprint & Structural Load: Measure the exact dimensions required for the frame, the mechanical arm's range of motion, and the creel. You must factor in the structural capacity of your concrete slab. Dual-vibration setups require thicker concrete to prevent structural cracking.
Map Workflow & Material Logistics: Evaluate how raw materials move through the facility. Track the path of backing materials like felt and anti-slip fabrics. Map the delivery routes for heavy natural latex glue barrels. Mirrored setups require highly coordinated material delivery schedules to avoid severe aisle congestion.
Audit Operator Safety & Compliance: Assess your ability to install physical barriers. Mirrored configurations absolutely require overlapping optical safety scanners. You must ensure full compliance with regional regulations for moving robotic arms.
Determine Scalability Requirements: Single-sided layouts are easier to pilot for new operations. Mirrored configurations represent an aggressive commitment to high-volume, standardized production. Assess your future growth trajectory realistically before pouring concrete anchors.
Use the following summary chart to compare the core attributes of each configuration quickly. This data helps align your facility constraints with your production goals.
Evaluation Metric | Single-Sided Configuration | Back-to-Back Configuration |
|---|---|---|
Footprint Efficiency | Low (Requires more total square footage) | High (Maximizes yield per square meter) |
Maintenance Accessibility | Excellent (360-degree clear access) | Restricted (Creates rear pinch points) |
Yarn Logistics | Standard (Dedicated creel per machine) | Optimized (Potential for shared central creel) |
Vibration Management | Straightforward (Isolated structural load) | Complex (Requires heavy-duty floor anchoring) |
Safety Zoning Complexity | Low (Standard physical barriers suffice) | High (Requires overlapping optical scanners) |
The manufacturing process does not end when the needles stop punching yarn. Post-tufting workflows dictate the final quality of commercial carpets. Your chosen installation layout heavily influences these finishing processes. You must adapt your latex and backing workflows to fit your specific footprint.
In-situ gluing presents immediate logistical challenges. Commercial carpets require natural latex application while the piece remains securely on the frame. This step maintains absolute dimensional stability and prevents the rug from curling. Mirrored setups complicate this process significantly. Applying strong adhesives in condensed spaces requires specialized, high-capacity ventilation systems. You must ensure adequate drying clearance between the two frames. Without proper airflow, the natural latex cures unevenly, ruining the final product.
Finishing transitions require equally careful planning. Consider how heavy rugs move from the mechanical frame to the secondary backing stations. Single-sided setups usually offer a more linear, uninterrupted path. Workers can pull the glued rug directly off the frame and walk it straight to the finishing tables. They encounter zero obstacles.

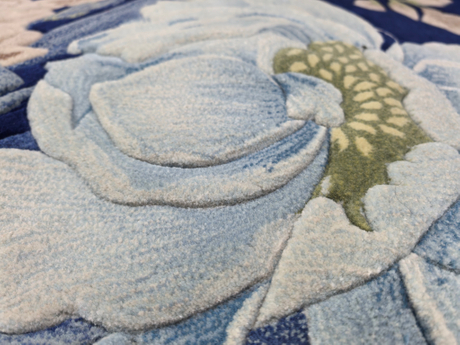

Mirrored configurations demand careful choreography. Workers often need specialized overhead hoists to move heavy, wet rugs out of the central aisles. You must plan the route to the carving and edge taping stations meticulously. If workers drag heavy carpets around tight corners, they risk damaging the delicate edge fibers. Designate clear transit lanes exclusively for finished product movement.
Different backing materials require different handling spaces. Felt backing for wall pieces is lightweight and easy to maneuver in tight spaces. Anti-slip backing for floor rugs is heavy and cumbersome. Ensure your layout provides enough floor space to unroll and cut these stiff materials properly before application.
Do not select an installation layout based purely on theoretical output numbers. Theoretical yield means nothing if your facility cannot support the operational logistics. Your decision must account for maintenance access, material flow, and operator safety.
Facilities with ample space should default to single-sided installations. This layout supports a high mix of custom, quick-turnaround designs brilliantly. It offers the flexibility and accessibility needed for frequent changeovers. High-volume manufacturers restricted by square footage must adopt mirrored setups. However, they must invest heavily in preventative maintenance protocols and vibration damping.
Take immediate action to validate your facility space. Conduct a comprehensive 3D spatial audit of your production floor. Consult directly with your equipment manufacturer regarding floor anchoring requirements and creel placement. Finalize these structural details long before you sign the purchase order.
A: Yes, it is feasible but highly disruptive. Converting layouts requires re-anchoring the heavy frames into the concrete. You must also re-route major electrical power drops and redesign the entire yarn creel infrastructure. We recommend planning your ultimate 5-year layout before completing the initial installation to avoid expensive downtime.
A: Mirrored machines operate in extreme proximity, generating overlapping harmonic vibrations. These vibrations can easily loosen the grid alignment of an adjacent canvas. Back-to-back setups require significantly sturdier, cross-braced frames and deep concrete anchors to guarantee consistent cloth tension across both machines.
A: They require consolidated, high-capacity utility drops. Running two heavy-duty machines from a single zone demands robust compressed air systems. Under-calculating your pneumatic load will cause severe pressure drops. This leads directly to mechanical misfires in the cut-pile mechanisms across both machines.
