Transitioning a complex digital carpet design into a physical product requires more than just pushing a file to a machine. It demands precise translation from digital pixels to physical yarn placement. For scaling manufacturers and custom rug businesses, this translation phase often creates a massive bottleneck. Poor pathing decisions lead to material waste, excessive machine wear, and highly inaccurate pattern reproduction. When digital files fail to map correctly to mechanical movements, it ruins production margins and stalls assembly lines.
This article provides a comprehensive technical and operational breakdown of how digital files convert into executable commands. We explore the specific requirements for modern commercial equipment. Readers will learn how to evaluate software workflows and hardware upgrades accurately. By understanding this complex translation process, you ensure a seamless, efficient bridge between digital design software and the physical factory floor.
The transition from a digital image to a physical rug relies entirely on specialized filling path software that calculates optimal yarn placement and needle movement.
Automating the carpet design to tufting path process drastically reduces production time but requires upfront calibration regarding stitch density, pile height, and yarn tension.
Investing in a robotic tufting machine yields positive ROI only when paired with software that supports dynamic toolpath generation and minimizes machine idle time.
Evaluating a machine upgrade requires looking beyond maximum speed to assess software compatibility, error-handling capabilities, and the operator learning curve.
Designers create concepts using vectors and pixels. These digital formats offer limitless detail, perfect color blending, and instant scalability. However, manufacturing equipment operates in a rigid physical reality. Hardware faces strict limitations involving physical coordinates, needle gauges, and yarn thicknesses. You cannot simply plug a high-resolution image into a production line and expect an exact replica. The physical canvas imposes hard boundaries on creative designs.
Without optimized digital translation, production lines suffer immensely. They frequently experience "yarn collisions." This happens when the machine attempts to place too many stitches into a single square inch. The needle strikes previously placed yarn, causing snapping, tangling, or severe tearing of the primary backing cloth. Inefficient travel times present another costly issue. When the mechanical head moves across the frame without actively inserting yarn, it wastes valuable seconds. Over an entire production shift, these wasted movements add up to hours of lost productivity. Inconsistent pile heights also emerge from poor digital translation, resulting in uneven textures requiring manual shearing.
To succeed, modern automation must bridge this gap flawlessly. An effective automated workflow achieves high-fidelity pattern reproduction every single time. It minimizes expensive material waste by calculating the exact yardage required before production begins. Most importantly, successful automation requires zero manual intervention once the cycle starts. We need smart systems where the physical output exactly matches the original digital intent. Achieving this requires specialized algorithms designed specifically for textile manufacturing.
Converting a visual concept into mechanical motion involves a rigid, sequential workflow. Skipping any step in this process guarantees manufacturing defects.
You must start by converting raster images into clean, scalable vectors. Formats like JPEGs or PNGs lack the mathematical precision needed for mechanical tooling. Raster images rely on tiny square pixels, while tooling requires continuous mathematical lines. The software traces these pixels to create solid geometric shapes. Next, you perform color indexing. A digital image might contain thousands of color gradients, but a machine only holds a specific number of yarn cones. The software groups distinct colors intelligently, reducing the palette to match the physical thread count. This grouping minimizes frequent, time-consuming yarn changeovers during production.

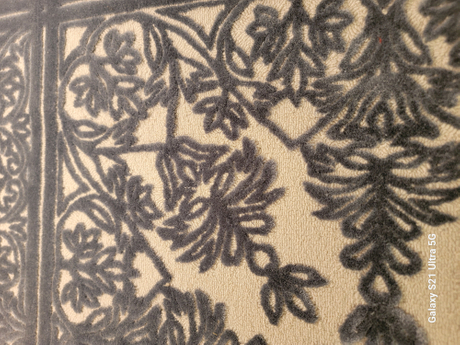

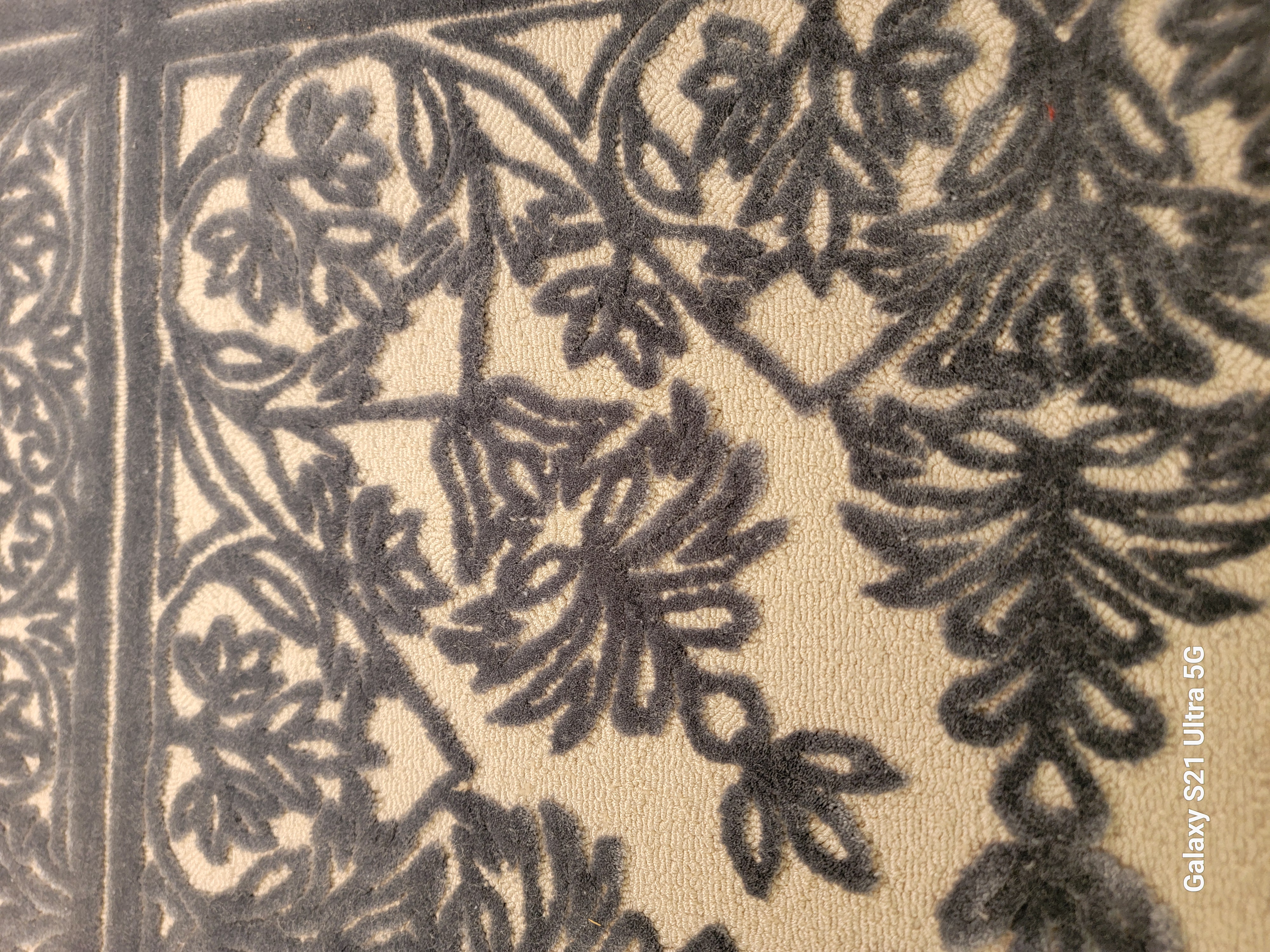

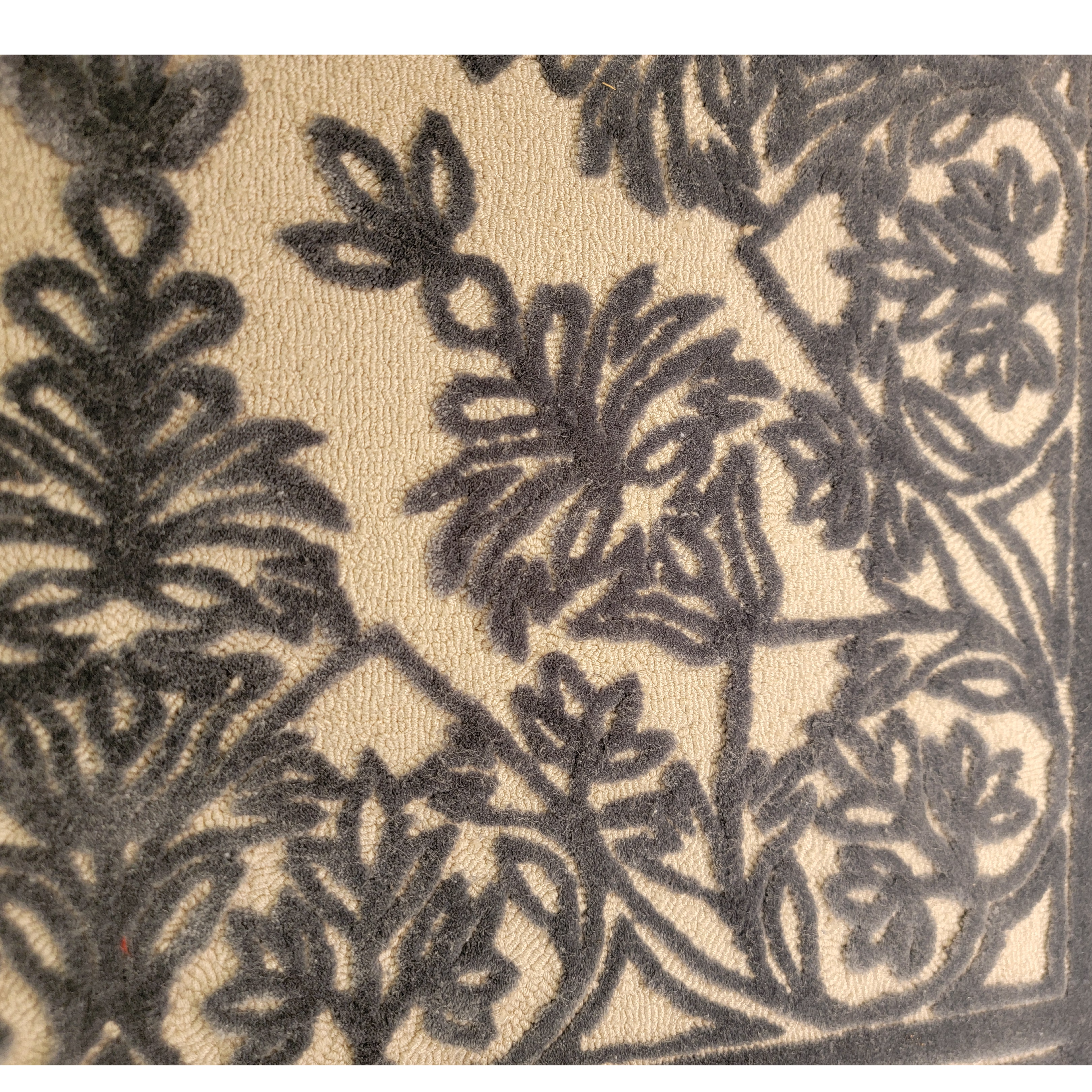

The digital file now needs real-world manufacturing variables. You assign strict physical values to the digital shapes. Operators define the required stitch density, usually measured in stitches per inch or decimeter. You must specify the exact pile height for each section. Cut pile and loop pile styles require entirely different mechanical behaviors. Cut pile requires the machine to actuate a tiny blade after looping the yarn, while loop pile simply pulls the needle back. You must also account for specific gauge limitations, ensuring the design does not demand details smaller than the needle's physical width.
During this critical step, the system calculates exact X-Y-Z coordinates for the machine head. The software maps the most efficient route across the canvas. It decides where the needle drops, how far it travels between drops, and when it needs to lift and move to a new color zone. Generating a precise carpet design to tufting path ensures the mechanical components move smoothly. The algorithm actively works to prevent overlapping lines and unnecessary travel across empty spaces.
Finally, the visual path compiles into actionable mechanical data. The software translates the visual lines into a proprietary machine language or standard G-Code. This code dictates motor speeds, axis positions, and blade timing. Modern CNC equipment reads these complex text files line by line. The motors interpret the code, driving the belts, gears, and needles to execute the digital design flawlessly in the physical world.
Selecting the right translation software determines your factory's overall efficiency. Not all algorithms perform equally. Evaluating these platforms requires a deep look at their processing logic, compatibility, and error-prevention capabilities.
Algorithm efficiency matters heavily. Superior platforms offer multiple filling methods to handle different shapes. You need raster filling for standard, wide-open background blocks. Raster filling moves back and forth in straight lines, similar to mowing a lawn. Conversely, you need contour filling for intricate shapes. Contour filling follows the shape's natural outline, spiraling inward or outward. Choosing the right algorithm for specific design elements cuts machine travel time by up to 30%. Utilizing advanced filling path software keeps output high and motor wear low.
Algorithm Efficiency Chart
Algorithm Type | Movement Pattern | Best Application | Travel Efficiency |
|---|---|---|---|
Raster Filling | Linear, back-and-forth passes | Large, solid color backgrounds | High speed, low complexity |
Contour Filling | Concentric spirals matching outlines | Curved shapes, text, logos | Eliminates jagged edges |
Hybrid Filling | Combines outlines with internal linear fills | Complex geometric patterns | Maximum time savings |
Assess hardware agnosticism versus closed ecosystems. Does the software lock you into a specific proprietary brand? Closed ecosystems often force you to buy overpriced replacement parts and restrict future upgrades. Look for platforms offering universal export formats like standard G-Code. Universal compatibility gives you manufacturing flexibility. You maintain the freedom to switch hardware vendors as your business scales.
Look for robust simulation capabilities. High-quality platforms provide pre-production virtual simulations. These digital twins run the toolpath on your screen before a single motor engages. They detect path intersections, flag potential yarn collisions, and identify mechanical faults. Catching these errors digitally prevents you from wasting expensive backing cloth and premium wool.
Handling complex geometries separates basic tools from professional suites. The software must transition smoothly around sharp corners. It must navigate tight curves without snapping the thread or breaking yarn tension. Poor software creates jagged edges on curved lines, forcing manual correction later.
Transitioning from manual tools to automated hardware requires careful operational analysis. You must evaluate how mechanical automation aligns with your specific production demands.
Throughput versus setup time dictates real profitability. Compare the rapid, autonomous output of automated hardware against manual preparation time. Prepping digital files, loading the creel, and threading needles takes considerable effort. For single, small custom rugs, this setup time might exceed the actual production time. However, a robotic tufting machine excels at high-volume orders. It also suits complex, high-margin custom work perfectly. Once calibrated, the hardware runs continuously, drastically outpacing manual laborers across large surface areas.
Precision and repeatability drive necessary hardware upgrades. Mechanical automation guarantees exact replication across multiple units. If a hotel orders fifty identical lobby rugs, automated hardware ensures the fiftieth rug matches the first one perfectly. This consistency offers a massive advantage over manual methods. Human error completely vanishes from the production line. Automated sensors maintain exact pile heights, ensuring a perfectly even texture across every square inch.
Use clear shortlisting logic when selecting new equipment. Base your hardware choices on your typical design complexity. If your clients demand intricate geometric patterns or hyper-realistic portraits, prioritize advanced tooling capabilities. Review the robustness of the manufacturer’s native software. Hardware is only as capable as the instructions it receives. Evaluate commercial Tufting Machines based on their software integration, frame stability, and motor responsiveness.
Installing automated equipment introduces new variables to your factory floor. Acknowledging these realities prevents prolonged downtime and frustrated operators.
The operator learning curve often catches businesses off guard. Transitioning staff from traditional handheld tools to CNC equipment takes significant time. Operators need formal training in basic CAD principles. They must learn file troubleshooting, digital color indexing, and mechanical calibration. They shift roles from manual artisans to technical machine operators. You must invest in proper training to realize the benefits of automation.
Best Practice: Assign dedicated technicians to manage software translation, separating digital prep from physical machine operation.
Common Mistake: Expecting manual artisans to instantly understand G-Code error logs without comprehensive training.
Material variables introduce daily manufacturing challenges. Digital paths assume perfect, uniform yarn behavior. In reality, humidity changes everything. Cotton yarn swells in high humidity, causing needle jams. Yarn elasticity fluctuates heavily between different dye lots. Backing cloth tension naturally shifts as the frame rolls forward. Operators must monitor these variables constantly and make manual micro-adjustments at the control panel.
Best Practice: Calibrate backing cloth tension precisely before initiating large continuous runs.
Common Mistake: Ignoring yarn elasticity differences when switching between wool and synthetic acrylics.
Maintenance downtime requires careful scheduling and strict adherence. Automated systems demand rigorous lubrication routines. The rapid movement of loopers and cutting knives generates intense friction. Equipment needs regular needle replacements to prevent fabric tears and skipped stitches. Sensor cleaning ensures flawless digital path execution. Dust and loose fibers easily block optical sensors, causing the head to lose its physical position. Neglecting these basic tasks guarantees poor product quality and eventual motor failure.
Best Practice: Schedule preventative maintenance weekly, focusing on sharpening knives and clearing fiber dust from belts.
Common Mistake: Running the machine until a part breaks, resulting in days of stalled production.
The bridge between a beautiful digital design and a profitable manufactured rug relies entirely on mathematical precision. Optimized toolpaths eliminate expensive waste and protect your heavy equipment. They ensure every single stitch lands exactly where intended, matching the designer's original vision. Careful evaluation of translation algorithms and hardware capabilities prevents costly production bottlenecks and elevates final product quality.
Before purchasing new equipment or upgrading your software suite, request a live demonstration. Ask the manufacturer to process one of your own complex digital files. Watch them take your design through their specific software-to-machine workflow. Validate their efficiency claims using your actual production data. Seeing the digital translation process executed successfully guarantees you are making the right operational choice.
A: Automated software primarily relies on vector file formats like .AI, .EPS, or .DXF. Vectors use mathematical paths, allowing software to scale designs perfectly without losing resolution. Some machine manufacturers also utilize proprietary formats specific to their ecosystems. You must convert standard raster images into these vector or proprietary formats before generating accurate machine toolpaths.
A: No, you cannot send AI-generated art directly to production hardware. AI generates raster images made of flat pixels. You must first vectorize the image and drastically reduce the color palette. This intermediate step groups distinct colors and translates those pixels into the physical X-Y coordinates the machine requires.
A: The software handles varying heights by generating multi-layer instruction paths. It assigns specific Z-axis commands to different design sections. The controller reads these commands and adjusts the mechanical cutting or looping mechanism dynamically. This allows precise transitions between low tight loops and high plush cut piles within a single continuous run.
